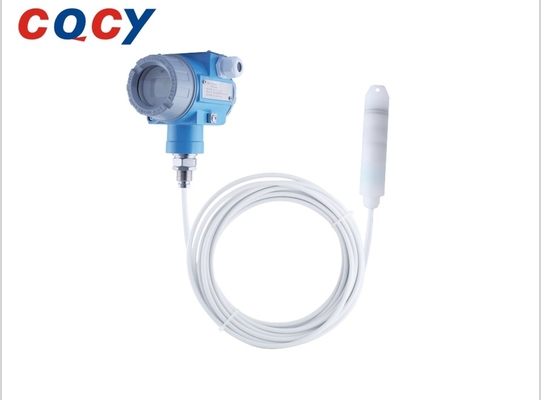

CYW71C Anti-corrosion type input Liquid level transmitter (Measurement of a corrosive liquid/4~20mA, hart, RS485
| 起源の場所 | 上海,中国 |
|---|---|
| ブランド名 | CQCY |
| 証明 | CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI |
| モデル番号 | CYW71C 耐腐食型入力液体レベル送信機 |
| 最小注文数量 | 1セット |
| 価格 | USD+50 dollars to 1000 dollars+1set |
| パッケージの詳細 | カートンパック |
| Delivery Time | 10-30 work days |
| 支払条件 | L/C,D/A,D/P,T/T,ウェスタンユニオン,マネーグラム |
| 供給の能力 | 3000+1セット+1日 |
商品の詳細
| 1範囲 | 0~20~200kPa | 2.Out put | 4~20mA、4~20mA HART、RS485 |
|---|---|---|---|
| 3.Power supply | 9~28VDC、13~28VDC、15~28VDC、15~24VDC | 4.Accuracy | 0.5%FS |
| 5.Measurement medium | Fluid compatible with the contact material | 6.Medium temperature | -40~60℃ |
| 7.Explosion-proof type | Burst proof Ex db IIC T6 Gb blow proof dust Ex tb IIIC T80℃ Db intrinsically safe Ex ia IC T6 Ga (only 4 ~ 20 mA output) dust intrinsically safe Ex iaD 20 T80℃ (only 4 ~ 20 mA output only) Note: intrinsically safe must be supplied through the safety grid o | 8.Stability energy | Si 0.2% FS / year |
| ハイライト | RS485 液体レベル送信機,4~20mA 液体レベル送信機,hart 液体レベル送信機 |
||
製品の説明
CYW71C Series of liquid level transmitter products use the 0EM pressure sensor with ceramic piezoresistivity as the signal measurement element, and through the computer automatic test, using the laser resistance control process for the wide temperature range of zero and sensitivity temperature compensation. The probe shell is made of PVDF anti-corrosion material, the sealing ring is made of fluorine glue, and the transmission cable is made of tetrafluoride material, which has excellent anti-corrosion performance.
